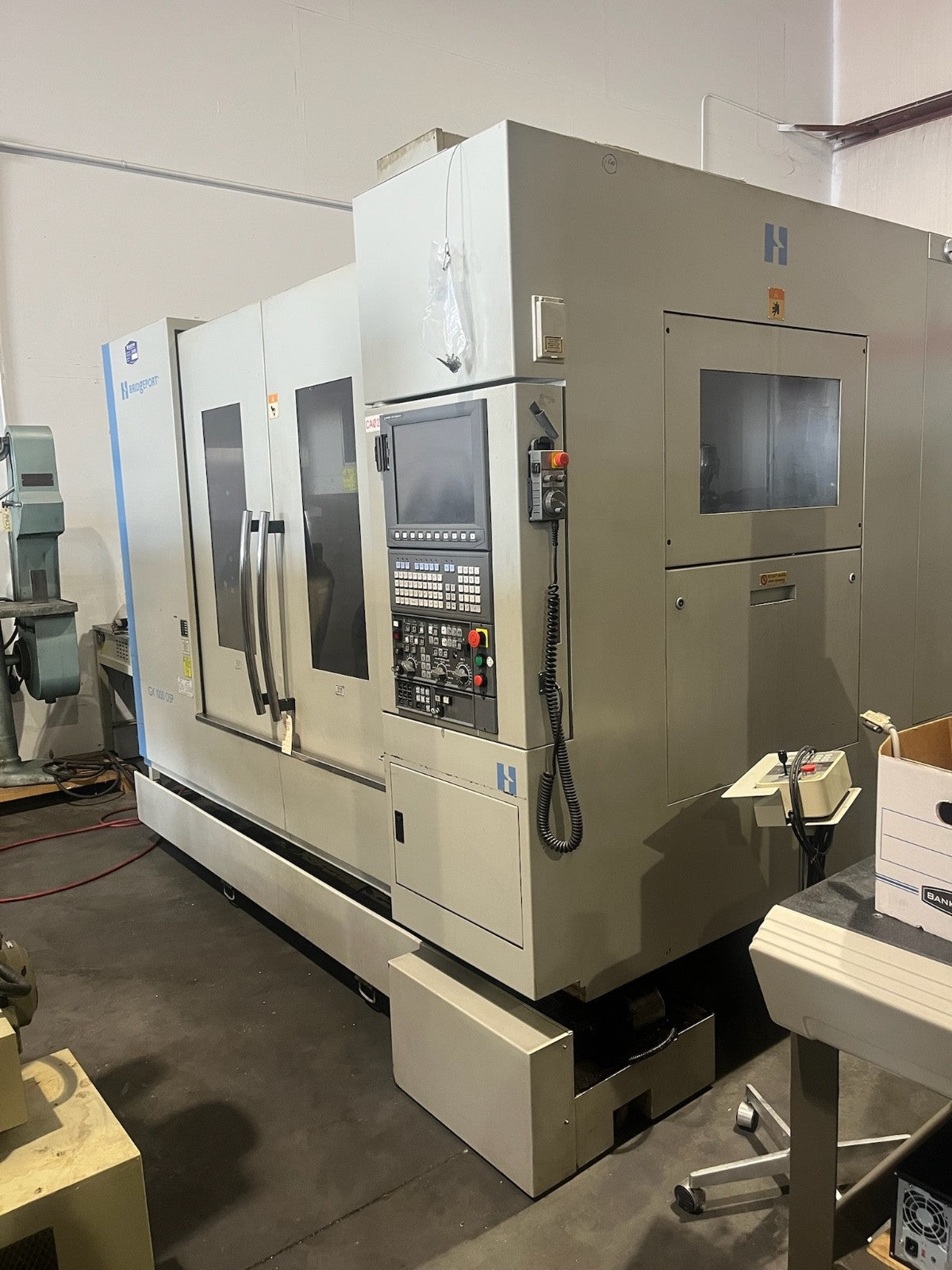

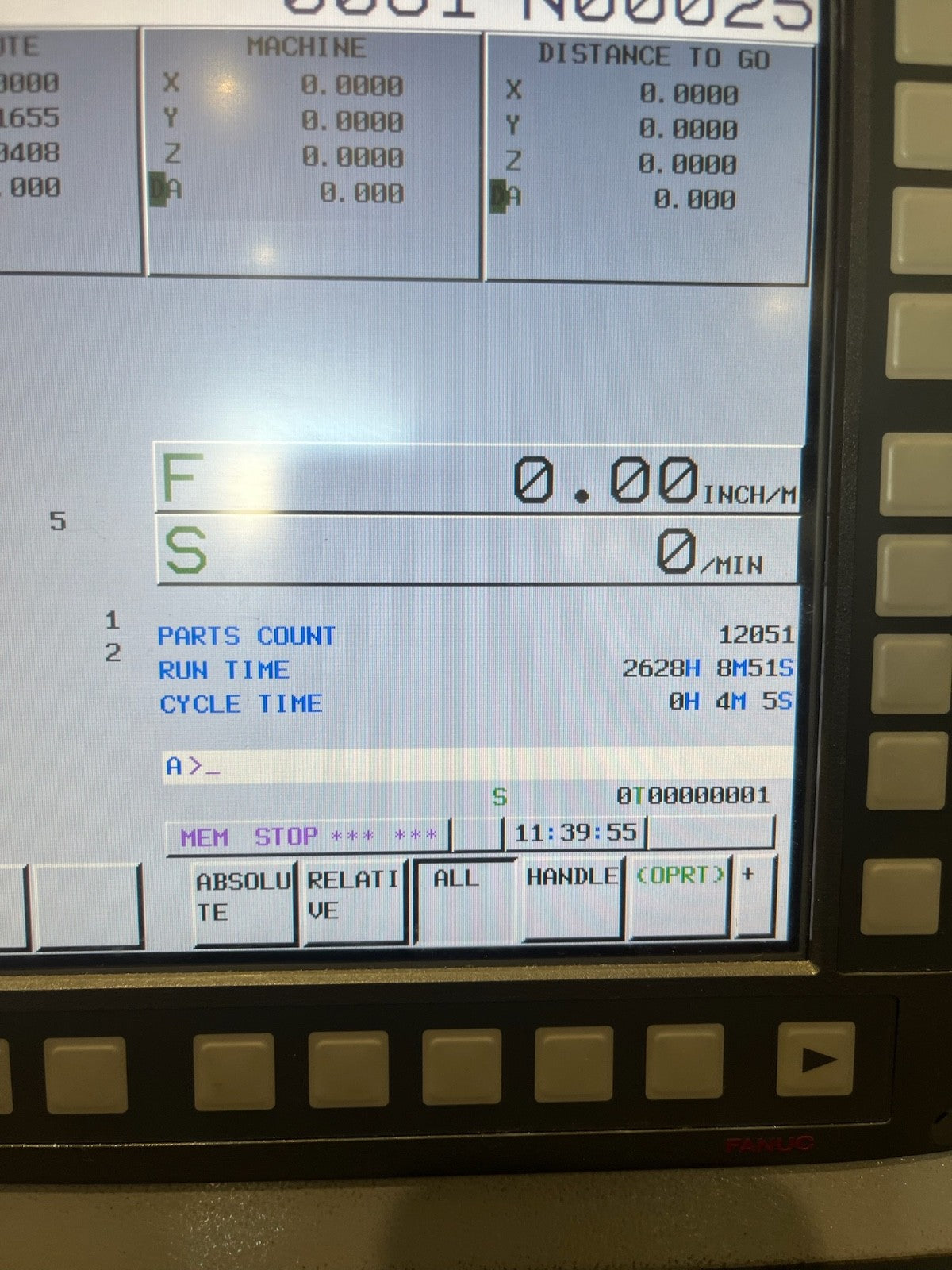

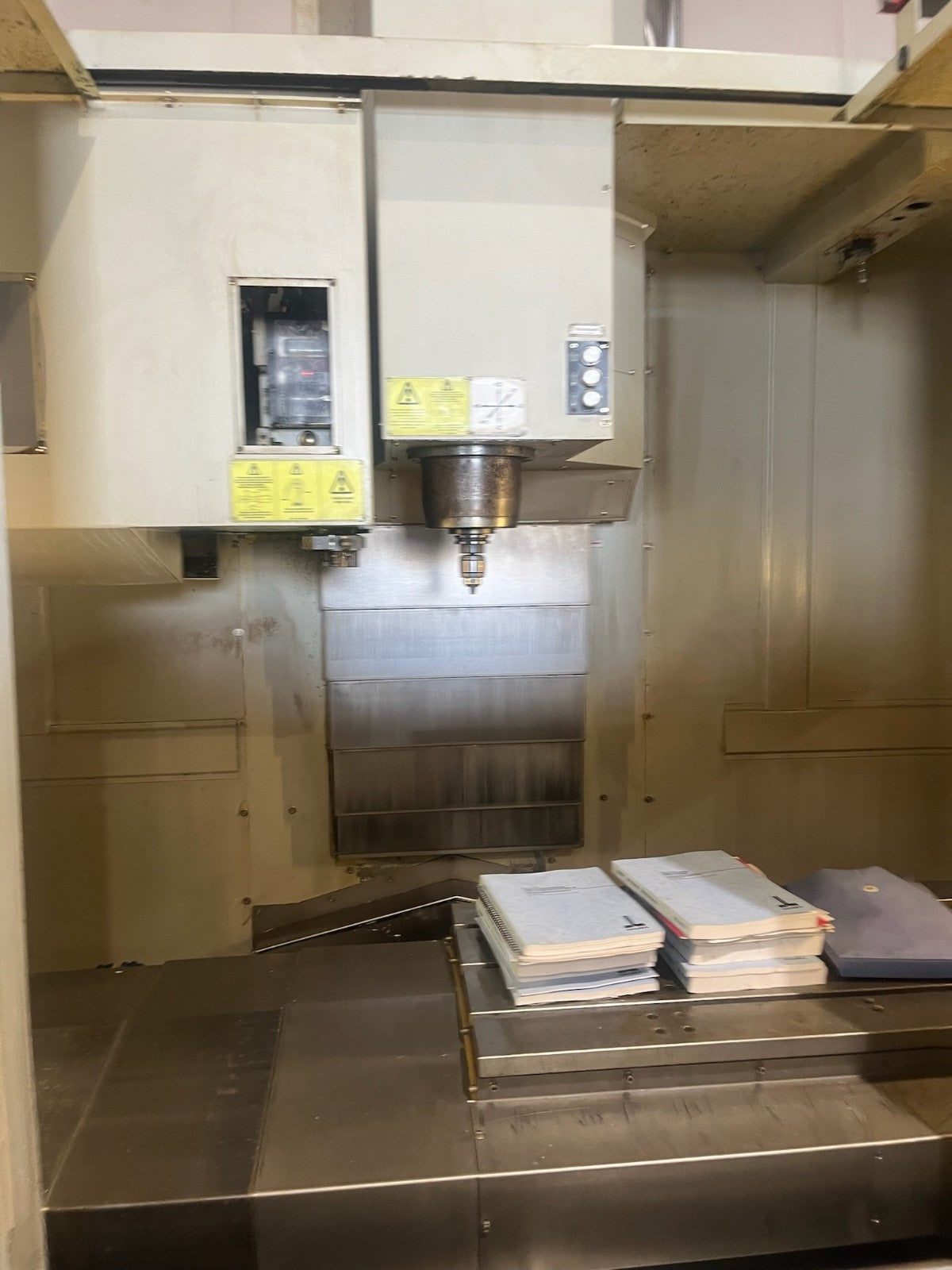

2020 Hardinge Bridgeport GX1600 Fanuc 0i-MF Control 63"/27.5"/25" Z ONLY 2600HRS. LIKE NEW. ONE OWNER
# Axis 3

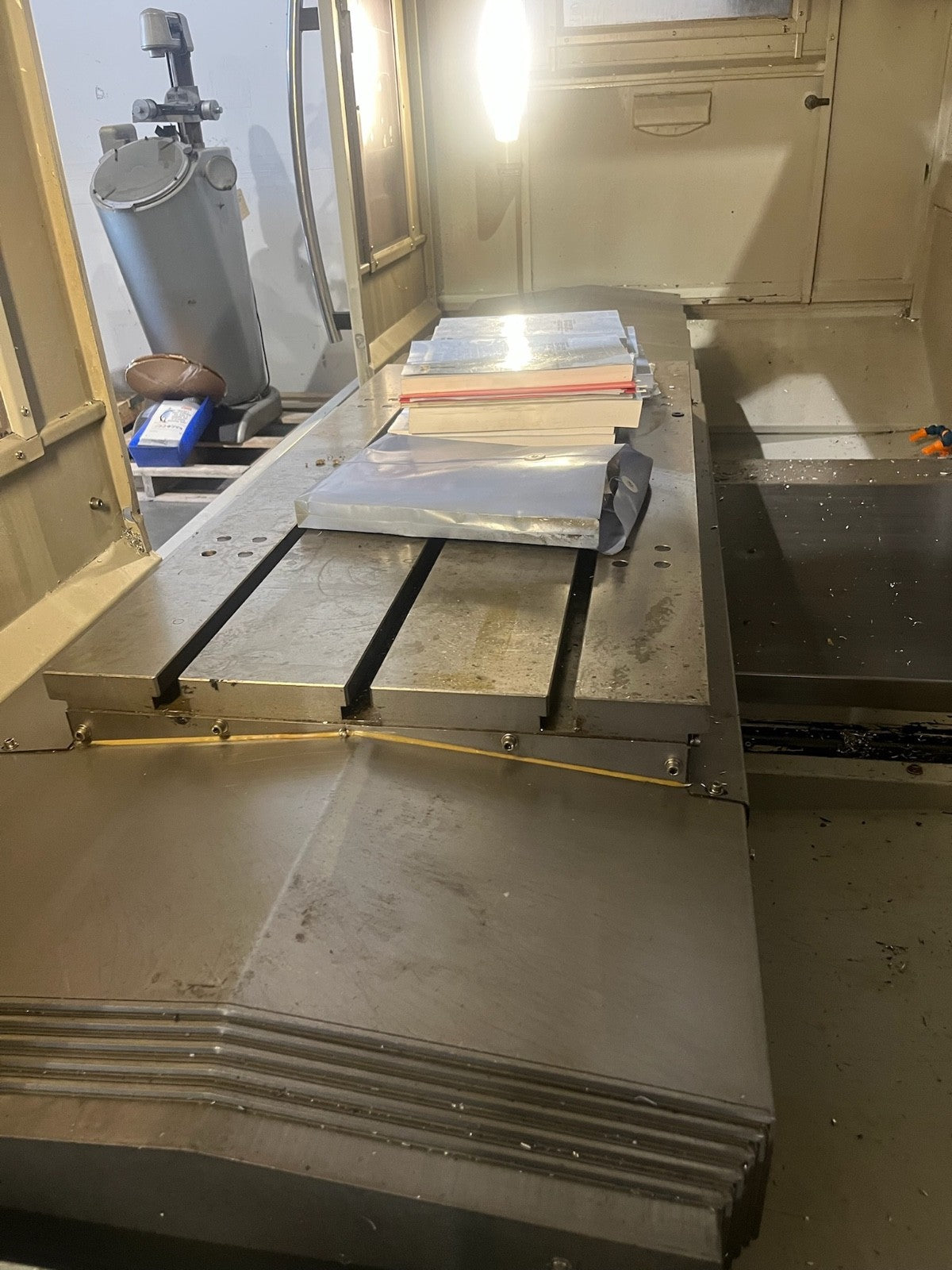

Table Size 66.93" x 27.55"
Table Load Capacity 3,300 LBS
X-Axis (Longitudinal Travel) 62.99"
Y-Axis (Cross Travel) 27.55"
Z-Axis (Vertical Travel) 25"
Max/Min Clearance Table Top to Spindle Nose 31.1" / 6.1"
Feed Rates, All Axes 0.1 - 472 IPM
Spindle Horsepower 25 HP
Max Spindle Speed 6,000 RPM
Spindle Taper CAT 50
Torque, Up To 104 FT/LBS
Automatic Tool Changer Capacity (ATC): 30
Automatic Tool Changer Style: Side-Mount Swing Arm
Machine Hours: 3617
Electrics 380-440/3/60
Approximate Machine Dimensions 153.5" x 107.2"
Approximate Machine Height: 113.3"
220V 3 Phase
Approximate Machine Weight: 21,560lbs
We sell used equipment at deeply discounted prices. Buyers are encouraged to inspect items at our showroom before purchase.
Because freight shipping costs vary by buyer location, buyer must arrange own freight shipping. Please use the following information when researching shipping costs.Buyer will be responsible for loading, machine is to have for us to load.
Recommended shipping method: Flatbed
| Shipping Dimensions | |||
| Length: 17' | |||
| Width: 8' | |||
| Height: 8' | |||
| Weight: 22,000 lbs | |||
Shipment Zip Code: 63385
Our warehouse is equipped with a standard loading dock.
Stock #16019
