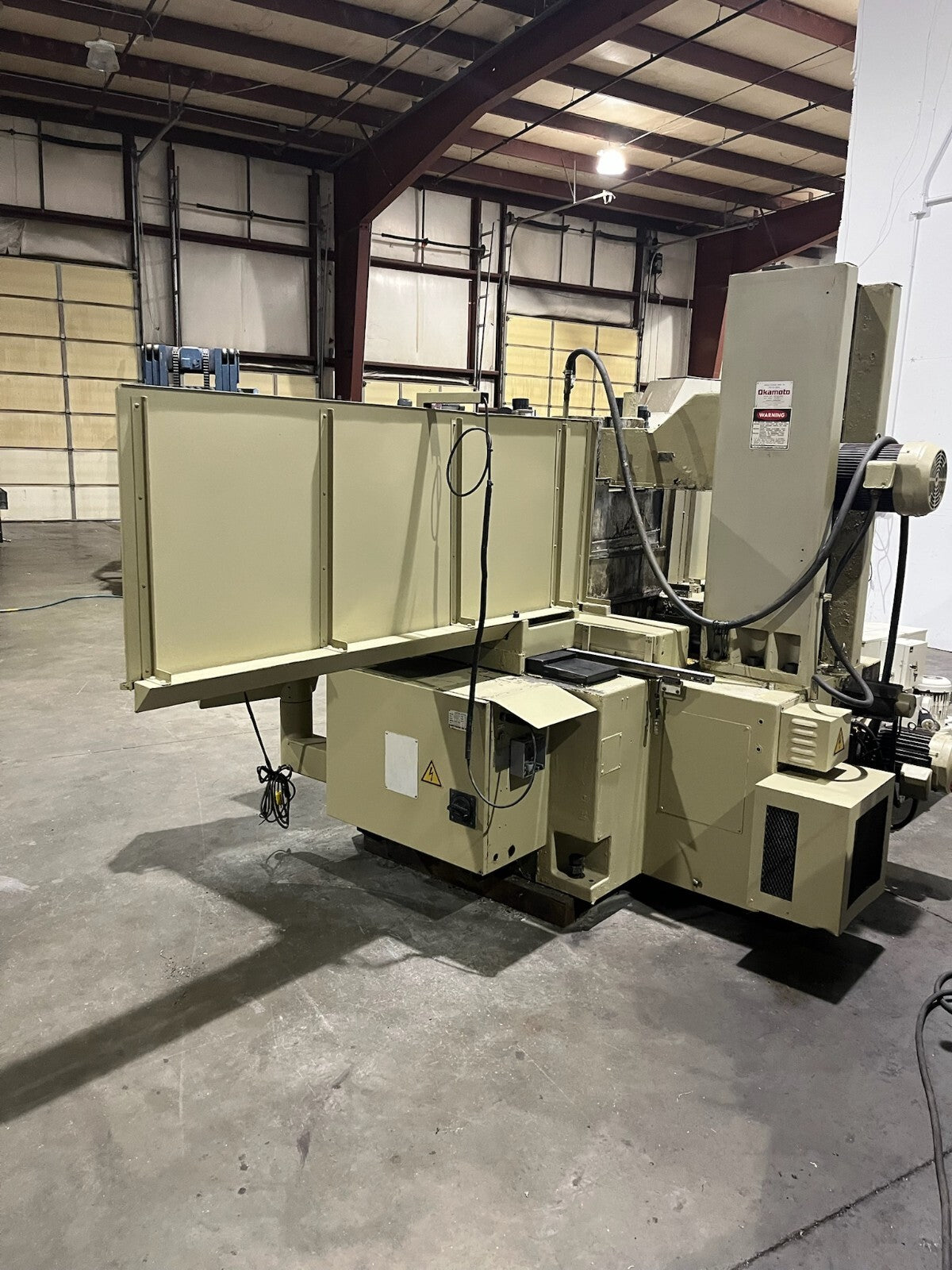

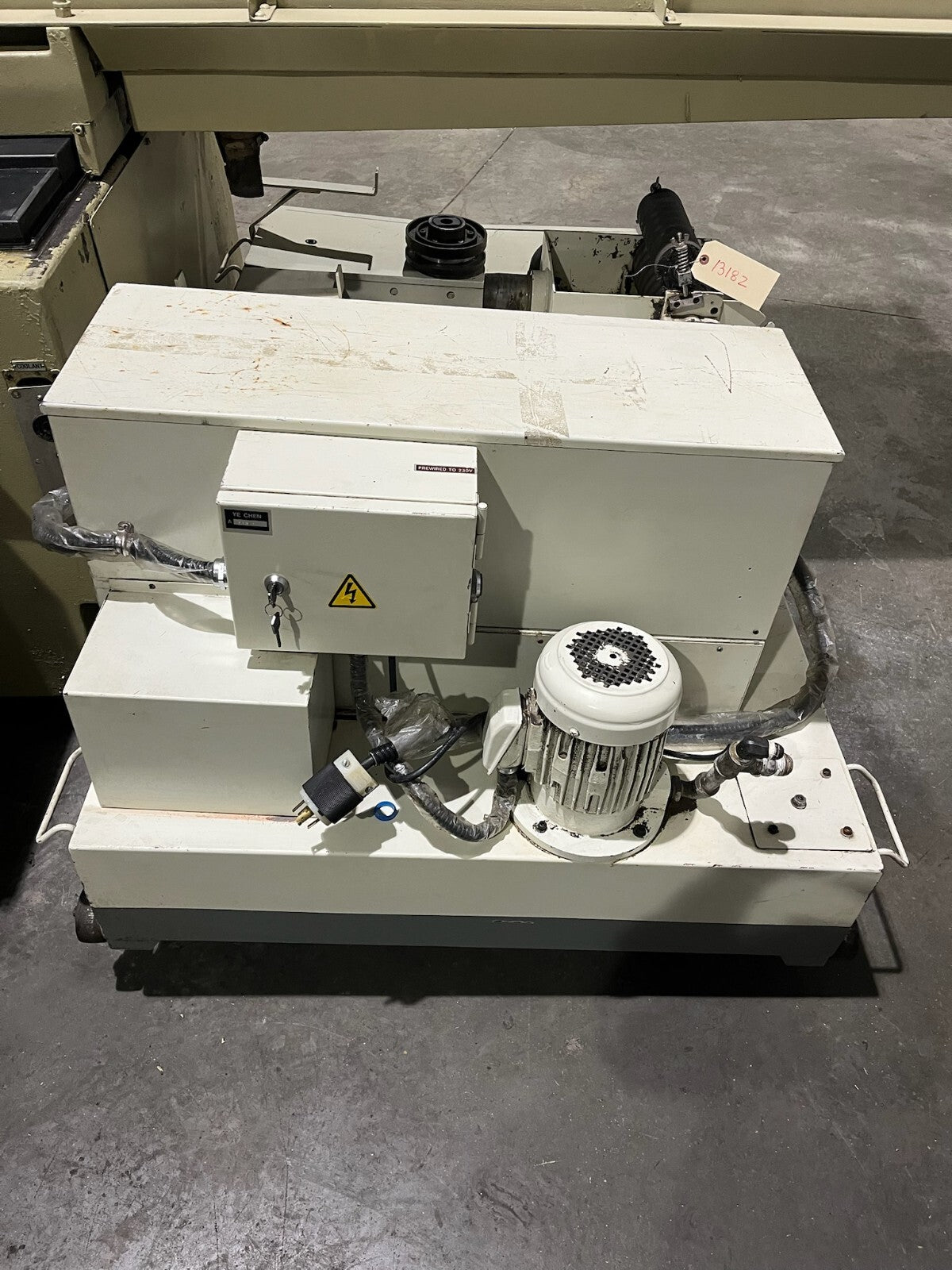

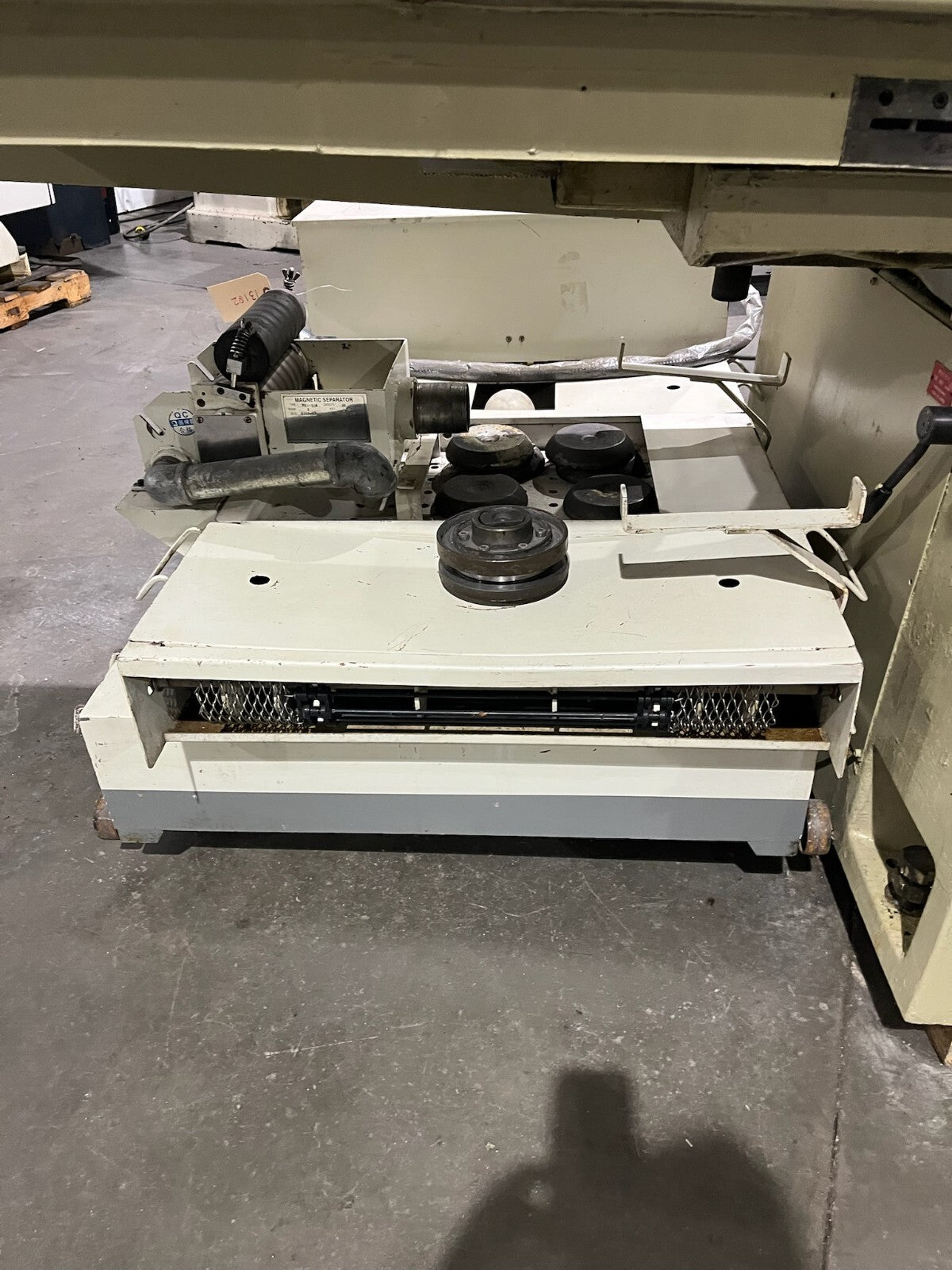

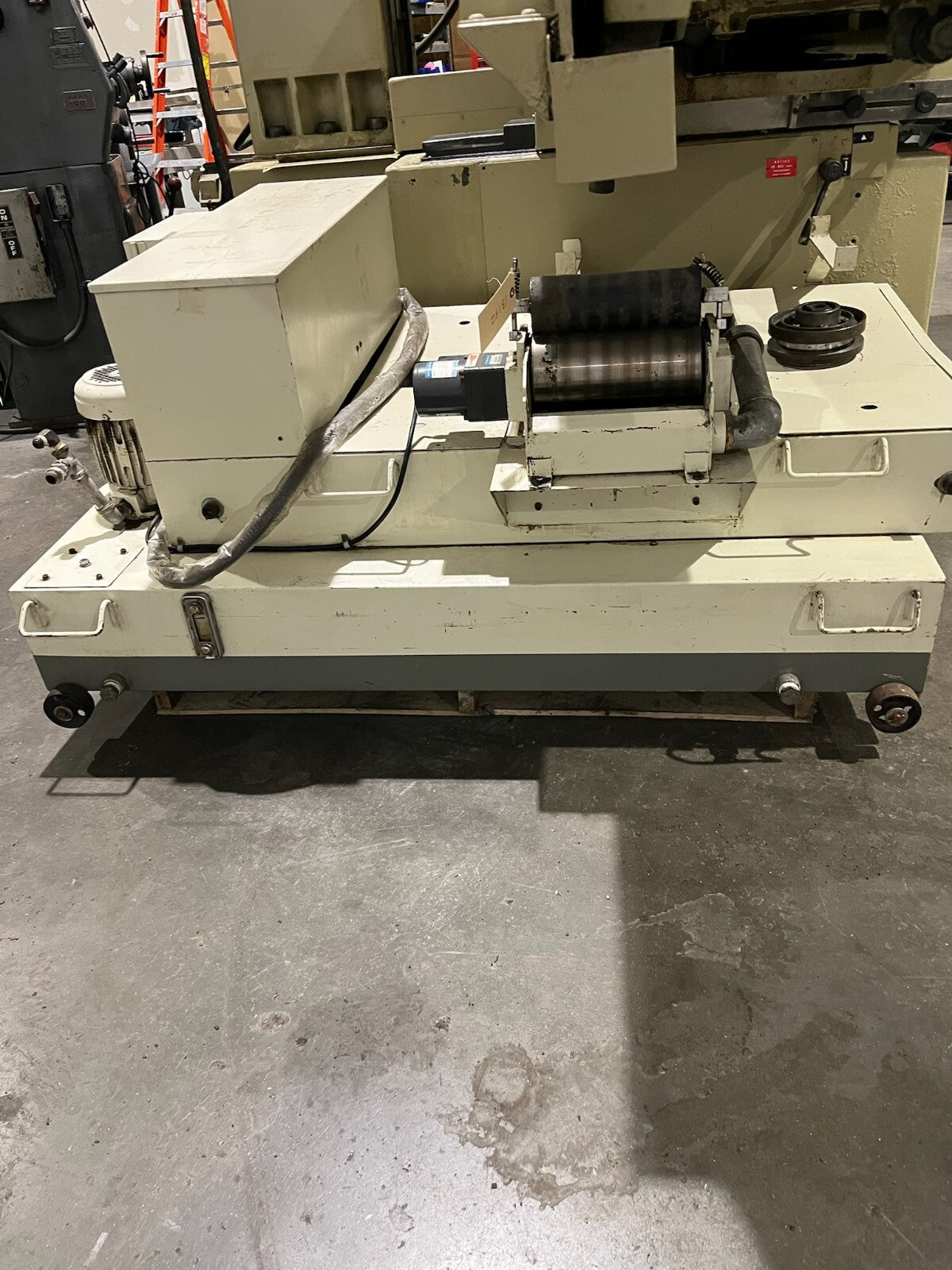

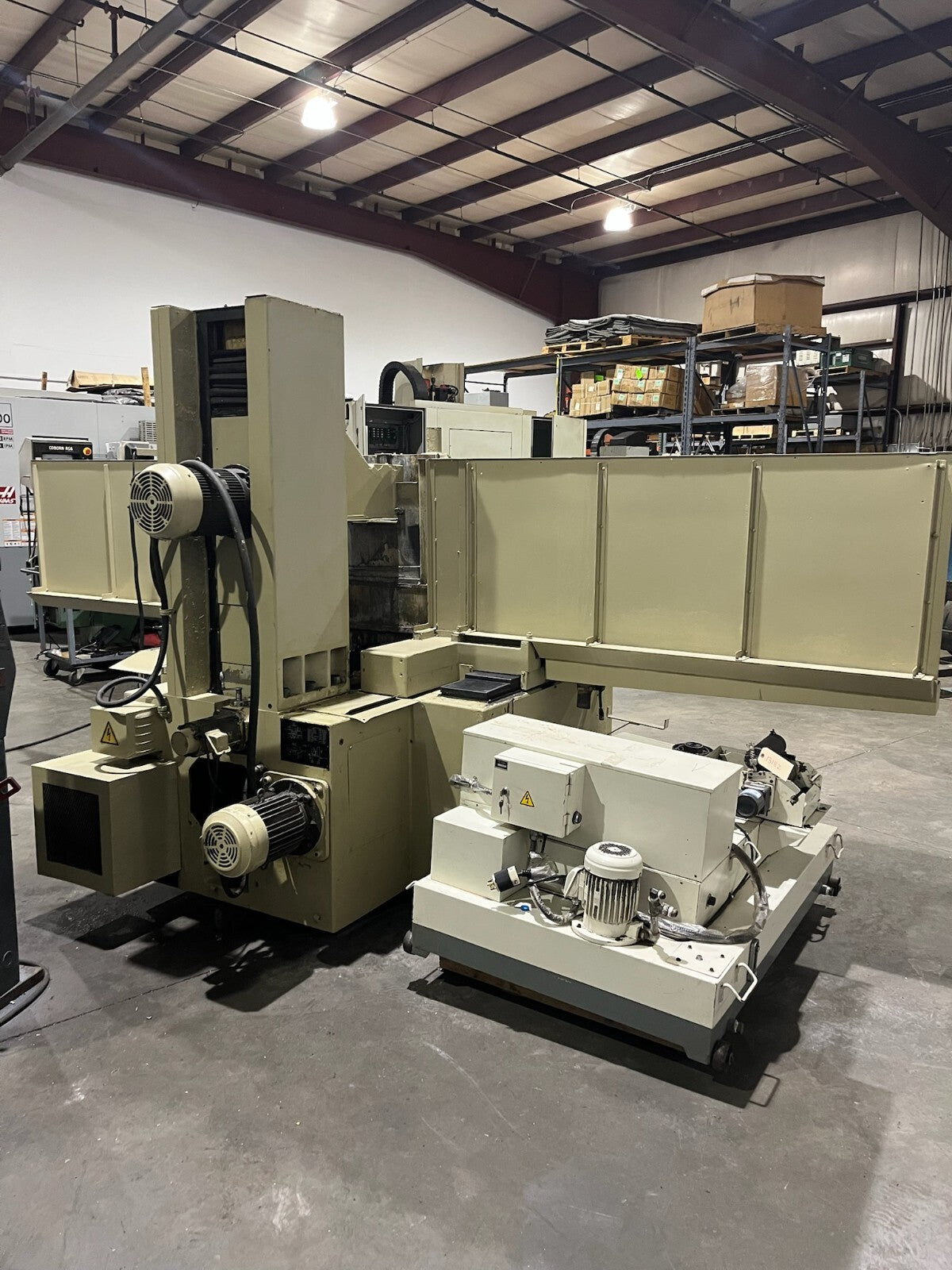

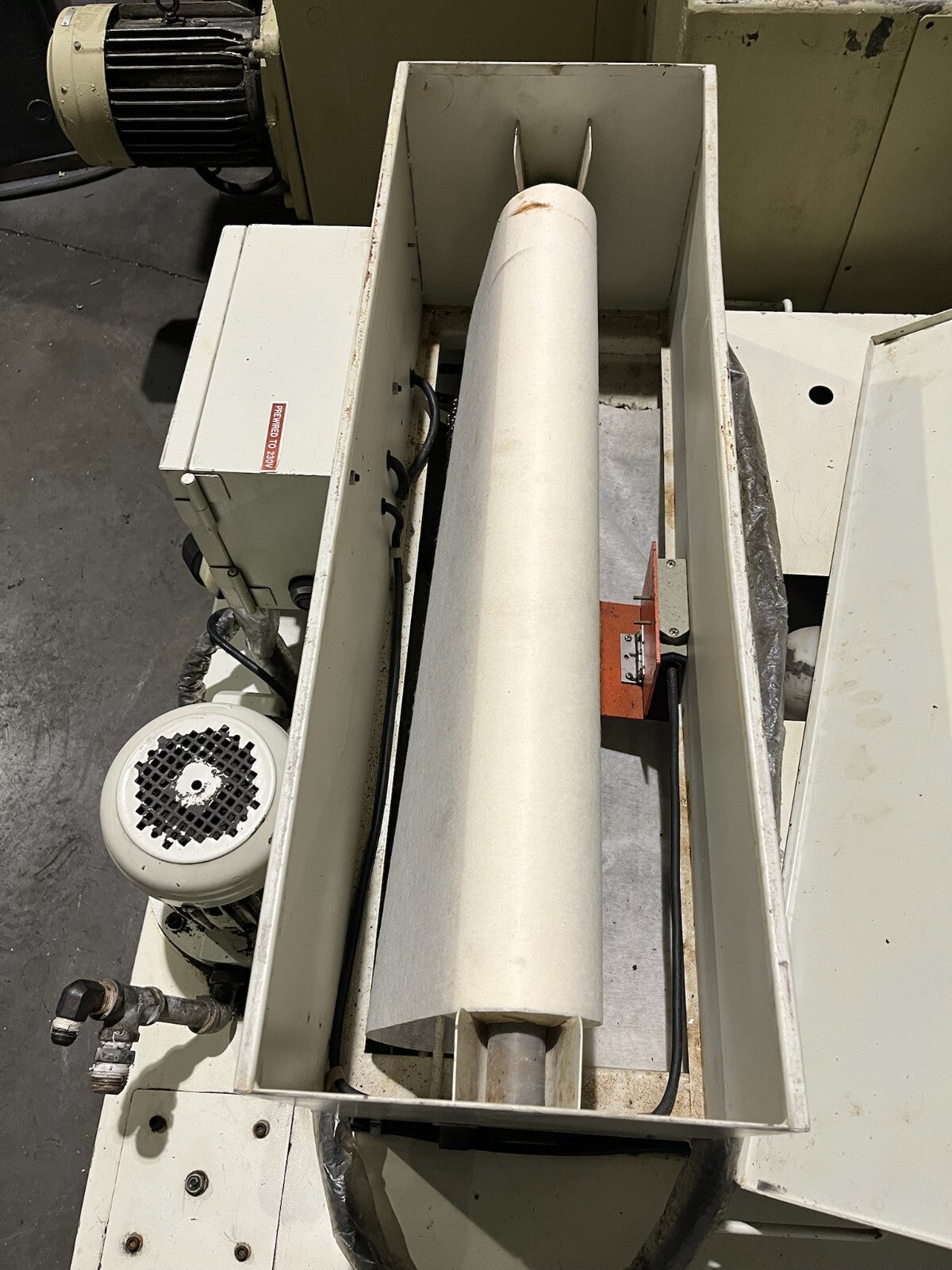

Okamoto ACC20-36DX Coolant Filtration Surface Grinder 20" x 36"

Dimensions        168"L x 100"D x 80"H

Weight 10600 pounds

SERIAL ....................... 69099

MODEL ........................ ACC-2036DX

TABLE CAPACITY ............... 20" x 36"

DISTANCE TABLE TO WHEEL ...... 0.9" TO 20.5"

WHEEL DIAMETER ............... 14"

LOAD CAPACITY ................ 1540 lbs

FEED RATE .................... 1 to 82 FPM

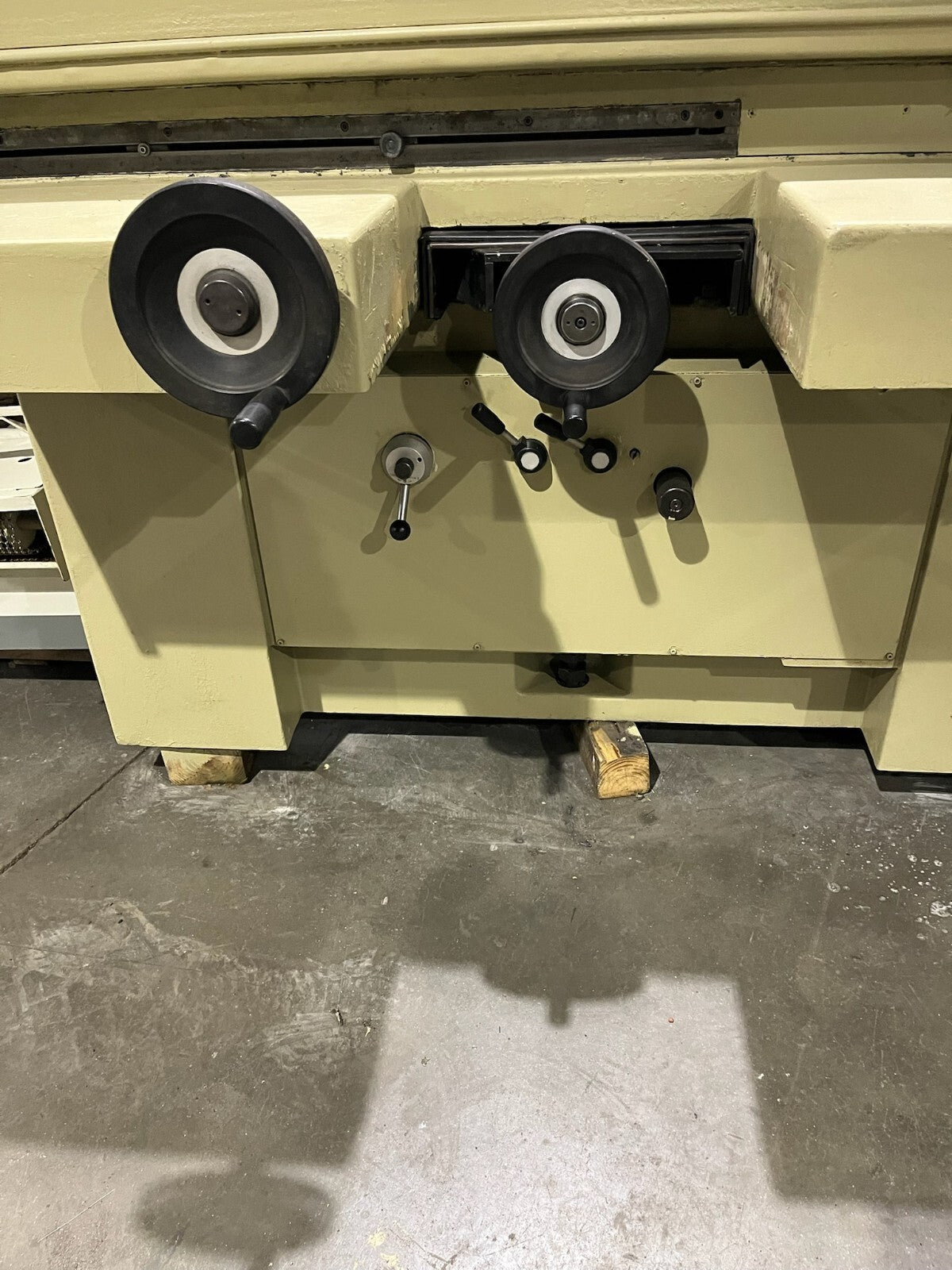

CROSS FEED MANUAL ............ 0.25" (0.001" graduations)

CROSS FEED AUTO .............. 0.02" to 0.8"

CROSS FEED CONTINUOUS ........ 8 to 40 FPM

DOWN FEED MANUAL MICRO FEED .. 0.00001"/.0001"/.001"

DOWN FEED AUTO 10 STAGE ...... 0.00005" to 0.0015"

VERTICAL RAPID FEED .......... 16 FPM

GRINDING WHEEL SIZE .......... 12" OD x 2"W x 5" bore

GRINDING WHEEL SPEED ......... 1800 RPM

GRINDING MOTOR ............... 5 HP

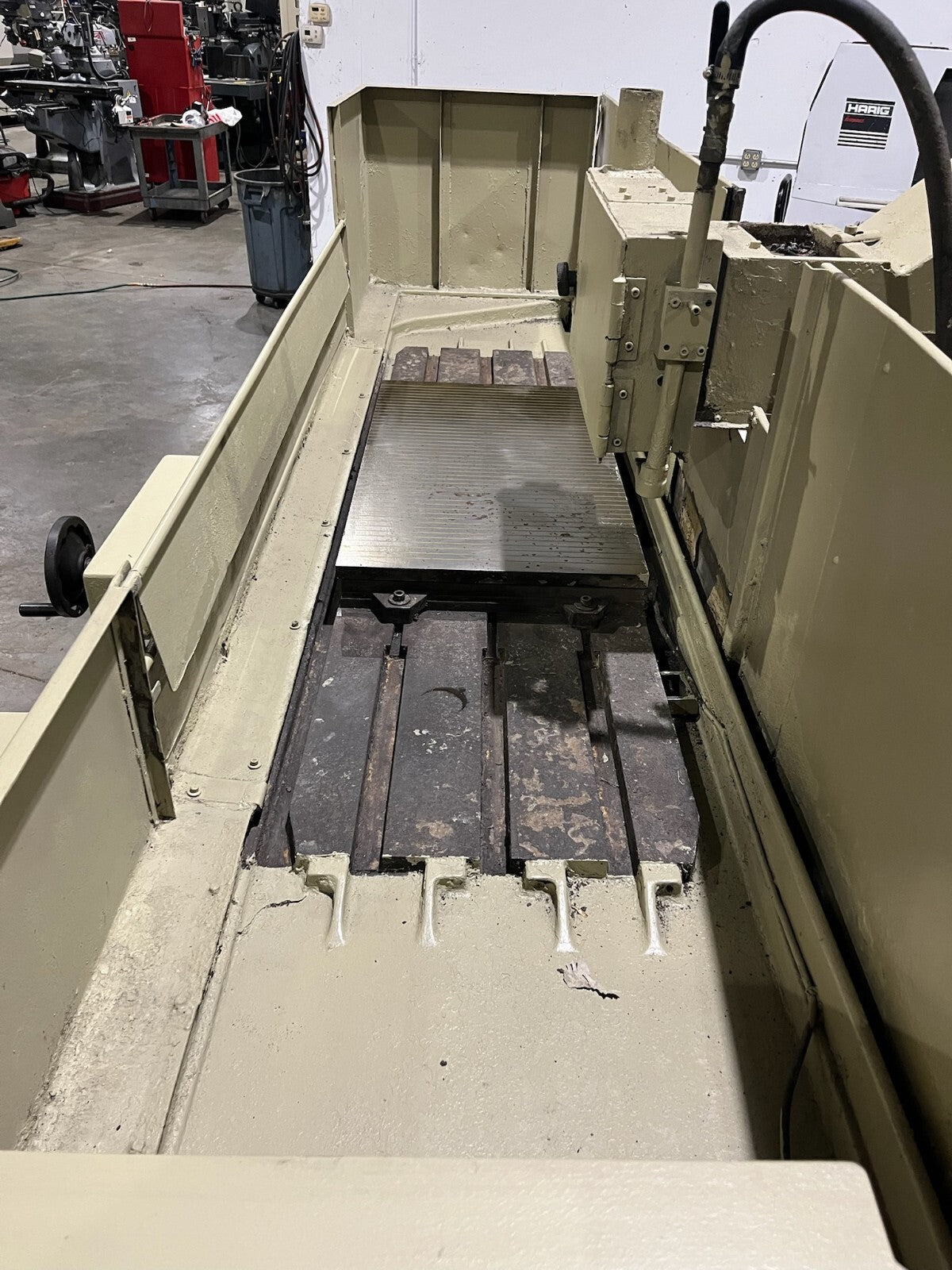

ELECTRO-MAGNETIC CHUCK ....... 19.7" X 35.5"
